Safety Belt Cutter PLC Control Certificated Leather Shoe Making Machines
Jinan Kang Jia CNC Equipment Co., Ltd.- Waterproof Rating:IPX-0
- Warranty:1-year
- Certification:CE, ISO 9001:2000, ISO 9001:2008
- Condition:New
- Control:Automatic
- Application:Paper, Plastic, Leather, Fabric
Base Info
- Model NO.:KJ1625,1615,1630
- Power Source:Electric
- Layout:Horizontal
- Voltage:110,220,380V
- Power:9-11kw
- Cutting Speed:1500mm,S
- Cutting Thickness:50mm
- Safety Device:Infrared Radiation,Anti-Collision,Emergency Stop
- Transport Package:Wooden Box
- Specification:1600*2500mm
- Trademark:kangjia
- Origin:Jinan China
- HS Code:8461500090
- Production Capacity:100 Unit , Month
Description
Multifunctional heads optonalVibration knife (oscillatory knife) Circular knife (round knife / rotary knife) Oblique knife (V-cut) Marking pen Punching roller (round punching/v-punching/optional) Milling knife Drag knife Pneumatic knife Projector and camera optional Safety device Using infrared sensors, mechanical safty device, Intelligent anti-collision device responsive, safe and reliable. Material feeding type Auto feeding or manual feeding Material fixed type Vac-sorb (vacuum absorption), suction fan power: 2.2kw / 7.5kw / 9kw Translational velocity 800-1500mm/s Cutting speed Max. 1500mm/s (according to different cutting materials) Cutting thickess ≤60mm (according to different cutting materials) Cutting material Fabric, all kinds of clothing flexible material, Sponge leather, PVC, soft glass, Silicon, rubber, cardboard etc. Repated accuracy ≤0.1mm Cutting type Mechanical vibration physical cutting Transmission / driving system Motor brand Panasonic, YASKAWA, Fuji, Delta Transmission type / Guide rail Digital servo motor, linear guide, synchronous belt, rack/spline, ball screw Instruction system HP-GL compatible format Control system LCD touch screem ( custom made) Voltage 220V / 380V±10%; 50HZ, 60HZ Other configuration Germany imported conveyor belt, vacuum table, Taiwan Hiwin rail, vacuum pump
Feature:
1. Heavy duty machine body, thick steel tube welding structure, whole machine weight more than 3.0 tons, guarantee the high working accuracy.
2. The machine base processed by precise milling machine and stress relieved by heat treatment, ensure long-term use without deformation.
3. Using CNC center to drill holes for installing gear racks and guiding rails, gurantee presicion.
4. Using the most advanced laser interformeter to measure accuracy;
5. Linear auto tool changing system, 8/10pcs tools station, changing tools within 2 seconds.
6. Core components are top brands in the world. Eg, Italy HSD Spindle and tool holder, Taiwan linear square rails, Japan servo motor, etc.
7. Fixed heavy duty spindle router with one or two interchangeable tools position for creasing wheel, drag knife, foam knife and V-knife, offers more versatility.
8. With a CCD positioning system, the machine can cut printed images.
9. Machine workbench size can be customized.
CNC machines

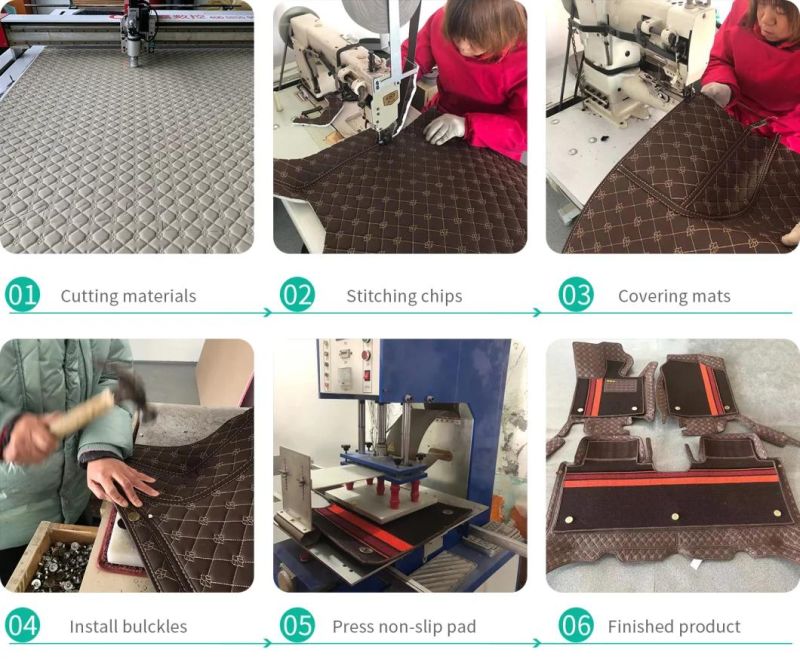

Application
About us

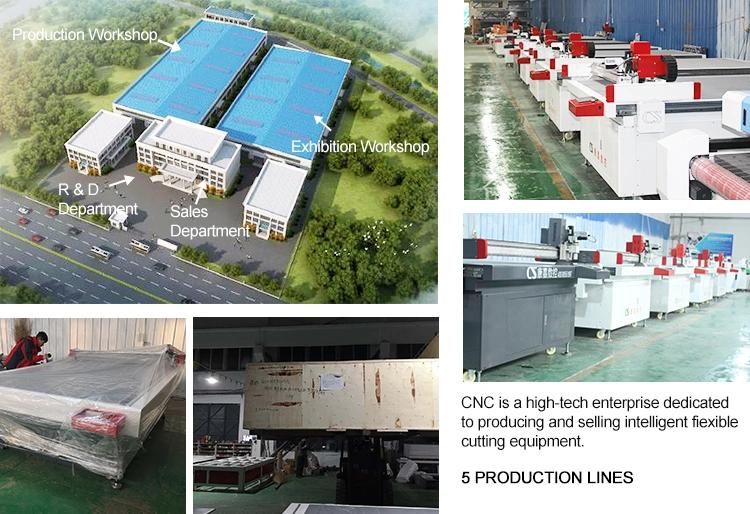

Jinan Kangjia CNC Equipment Co., Ltd is located in Jinan city of China and built in year 2016. It is a comprehensive service company specializing in the production, sales and technical service of knife cutting machine and laser cutting machine. It covers multiple fields and industries, such as automotive decoration, toys, garment, leather product, furniture etc. Its R&D level and production capacity has always been in the leading position in the same industry.
The factory covers 10000 square meters, with 150 staffs in total. The production capacity is about 100 unit / month.
Kangjia main products are oscillating knife cutting machine, laser cutting machine, CNC router and metal cutting machine. With the development of these years, we have built a complete sales and after-sales market service system in China. And our equipment have been exported to many countries of the world. The east Asia, south east Asia, Middle east, USA and Europe.
Certification
Exhibition

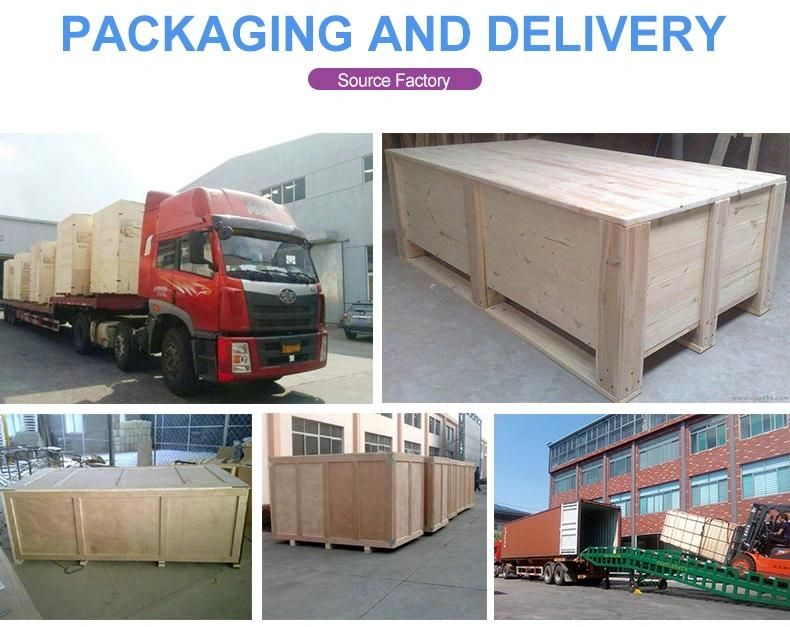

Packing and delivery
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
FAQ:
Q: 1. How can I choose a suitable Knife cutting machine?
A: Please provide us some info, then we can recommend you the suitable machine:
1)What materials are going to cut? Are they rolled or not? Breathable or not?
2)What's the largest size of original materials?
3)What's the thickness of materials?
4)Excepting for cutting, do you need more functions, like drawing, punching holes, scanning, feeding, CCD camera, etc.?
Q: 2. Can you design a machine for me depending on my requirements?
A: Of course, we will give our professional suggest and discuss details with you for the machine which matches all the requests with best cost performance.
Q: 3. What should I do if the machine has any problem in future?
A: We supply online/phone technical support and door to door service. Anything confuse or not goes well, pls contact us in the first time.
Q: 4. What's the warranty policy?
A:Standard warranty is 18 months upon delivery.
Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period.
Problems caused by wrong operate will also well-solved, but not for free.
We also supply life long after-sales service. No matter when, you can count on our best service for your machine.
Q: 5. If I don't know this machine before, how can I operate it?
A: We supply face to face training and provide operating video, user manual, and telephone calls to help.
It's easy to learn, one inexperience people can learn it within one day.
After-Sales Service
1.12 months quality guaranty (knives is 6 months), the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2. Free training course at our plant.
3. We will provide the consumable parts at an agency price when you need replacement.
4. 24 hours on line service each day, free technical support.
5. Our staff can be sent to your company to install or adjust if necessary.
