• Model NO.：KJZD1625
• Power Source：Electric
• Layout：Horizontal
• Voltage：110,220,380V
• Power：9kw
• Cutting Speed：1400mm,S
• Cutting Thickness：50mm
• Safety Device：Infrared Radiation,Anti-Collision,Emergency Stop
• Transport Package：Wooden Box
• Specification：1600*2500mm
• Trademark：kangjia
• Origin：Jinan China
• HS Code：8461500090
• Production Capacity：100 Unit , Month

Basic Info.

Model NO. KJZD1625 Power Source Electric Layout Horizontal Voltage 110/220/380V Power 9kw Cutting Speed 1400mm/S Cutting Thickness 50mm Safety Device Infrared Radiation/Anti-Collision/Emergency Stop Transport Package Wooden Box Specification 1600*2500mm Trademark kangjia Origin Jinan China HS Code 8461500090 Production Capacity 100 Unit / Month

Product Description

Production:3d cnc router Oscillator Knife CNC cardboard cutting machine

Voltage:110-380v
Power:9kw
Cutting materials:flexible materials
Fixed method:vacuum absorb
Motor type:servo motor
Application of vibrating knife cutting machine


Automatic Feed cutting machine KJZD1625
Model	KJ-1625 (auto feeding)
Operating Characteristic	Computer operation is carried out simultaneously with the cutting machie, quickly complete the data transmasion, and can be used continusly.
Machine overall size	3260*2120*1315mm
Working area	2500mm * 1600mm
Cutting speed	max. 140m/min  (per material)
Cutting thickness	0.1-50mm
Cutting accuracy	±0.1mm
Cutting material	Flexible materila, such as leather, fabric, coiled mat, sponge, foot mat, cardboard, sofa, cloth, PE board and other soft material.
Multifunctional head for different cutter	Half knife, full knife, punching roller, V-cutter, milling knife, pneumatic knife, eletric knife, Circular knife (round knife / rotary knife); pin
Material fixed type	Vac-sorb (vacuum absorption)
Location mode	Infrared laser lamp
Drive motor	Delta, Panasonic, YASKAWA, Fuji can be selected.
Power of suction fan	7.5kw
Working voltage	220V/380V/±10% 50hz/60hz
Safty device	Mechanical anti-collision device or infrared refletor
Transmission interfacr coffret	Internet transmission
Driving method	gear rack
Control system	LED touch screem
Guid rail	Brand: Yintai
Frame structure	Body welding
Suction case	Aluminum case
Compatible software	Kangjia intelligent software
Cetificate	CE/SGS; ISO9001/ISO14001/ISO18001

Osciliting knife cutting machine can cut fabric, leather, cardboard, plastic, paper, rubber, EVA foam, and it can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc. It's widely used for packaging protection, advertising display, termal insulation, model & mock up making, puzzle and pattern cutting, etc.

What materials can I cut with an oscillating knife?

The oscillating knife option can cut a range of materials, here is a few that spring to mind:

• Medium density foam
• Rubber
• Card
• Fabrics/textiles
• Correx
• Fibreboard

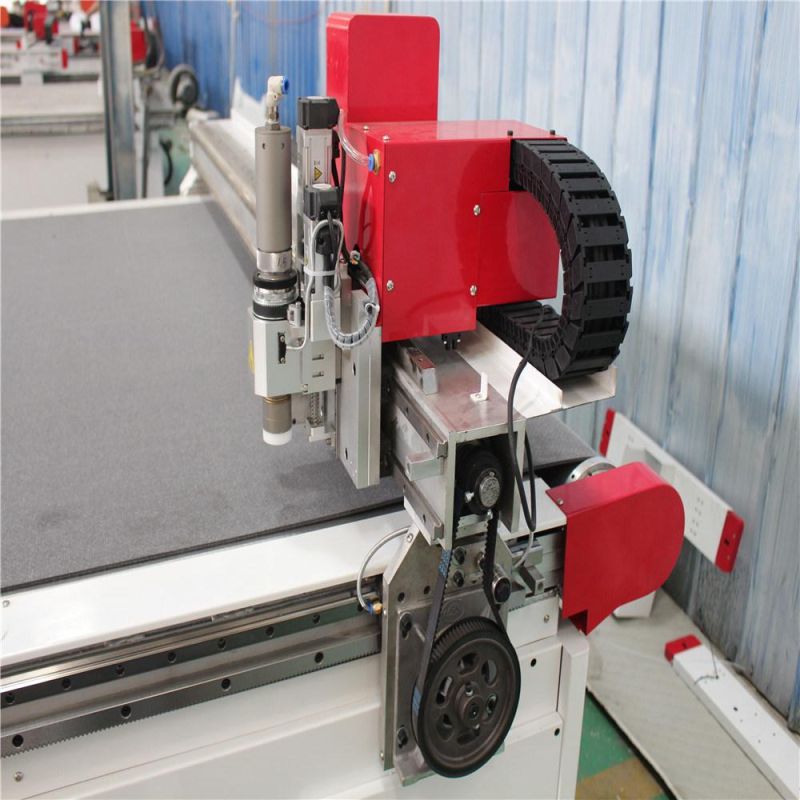

CNC machine parts

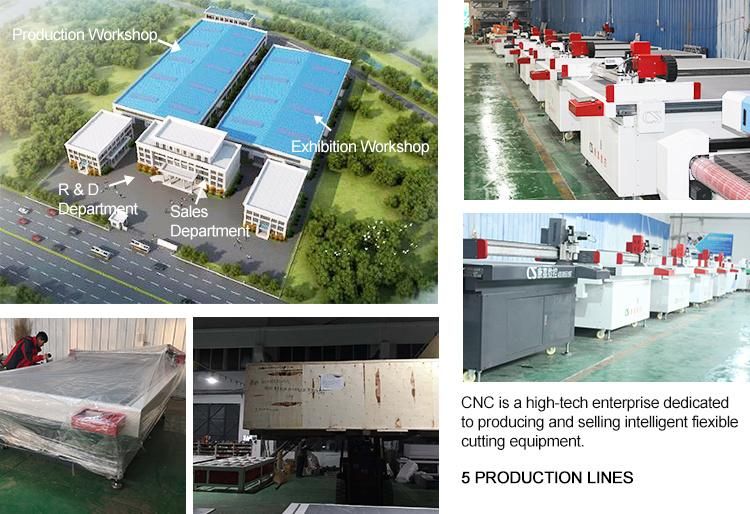

About us
Jinan Kangjia CNC Equipment Co., Ltd has focused on CNC equipment production for over 5 years. It is a comprehensive service factory specializing in the production, sales and technical service of oscillating knife cutting machine. It covers multiple fields and industries, such as automotive decoration, toys, garment, leather product, furniture etc. Its R&D level and production capacity has always been in the leading position in the same industry. Our factory is located in Jinan city of China. It covers 10000 square meters, with 150 staffs in total. The production capacity is about 100 unit / month.



Certification

Exhibition


Packing and delivery
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

FAQ
Q:I want to buy this machine,what suggestion can you give?
A:Please tell me what material do you process and what's the size of your material?

Q:What's the delivery cost & time?
A: Please tell me your sea port name,I check shipping cost,after production we will deliver ASAP.

Q:Have you exported to our country?
A:We have been in this field for 5 years,we have CE,ISO,SGS certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.


After-Sales Service

1.12 months quality guaranty (laser tube is 6 months), the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2. Free training course at our plant.
3. We will provide the consumable parts at an agency price when you need replacement.
4. 24 hours on line service each day, free technical support.
5. Our staff can be sent to your company to install or adjust if necessary.
